Simultaneous Use of All Four Small Boards

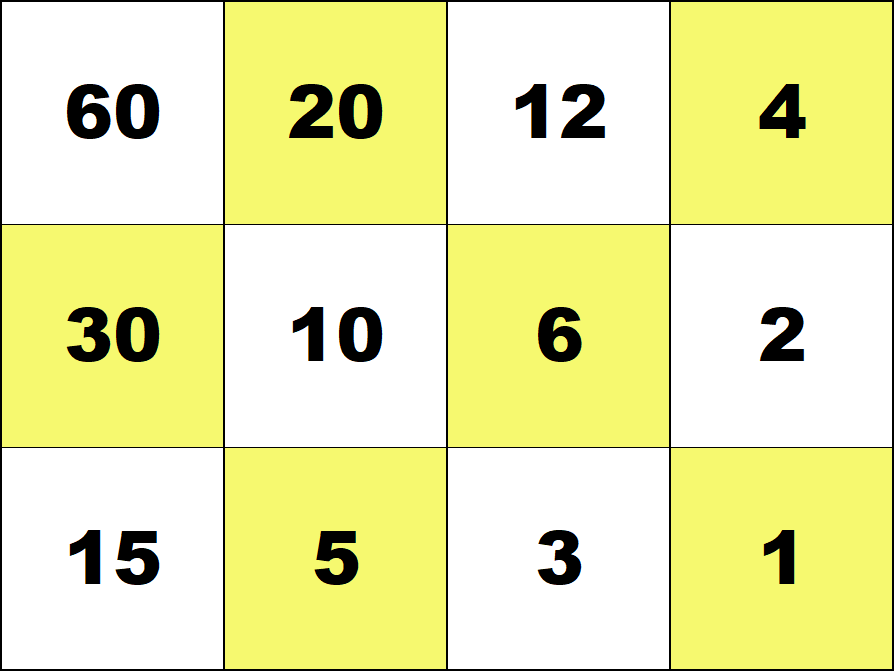

Using different counting boards can be confusing because two rules of regrouping, 5 = 4 + 1 and 3 = 2 + 1, are used together on both of the 3 by 4 boards.


Examples

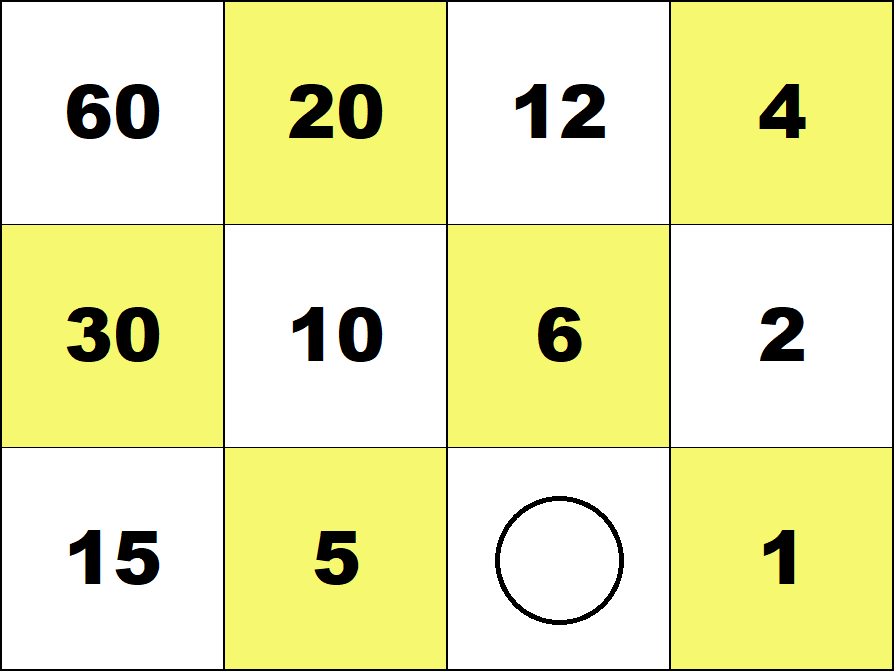

5 = 4 + 1


3 = 2 + 1

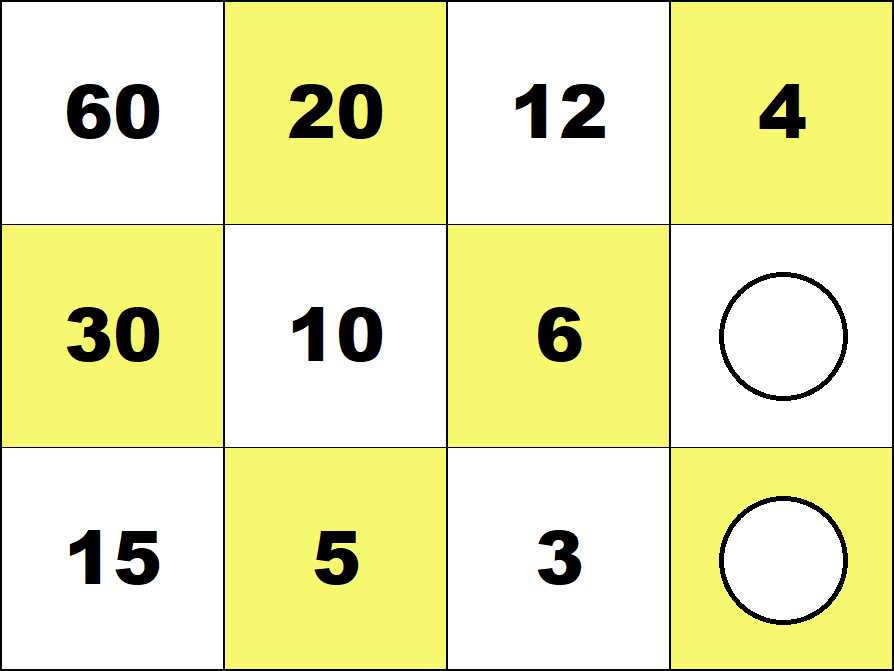

5 = 4 + 1 applied to the 3 by 4 fraction board


Therefore, some practice is needed until students become confident with regrouping counters on the two bigger boards.

Working with these boards is not essential for learning any specific arithmetic algorithm. But it provides the opportunity to get familiar with individual whole numbers up to one hundred and some small fractions. (Such knowledge is commonly called "number sense".)

The logical structure of arithmetic requires that such activities include using negative numbers. So in all activities, red counters must be used only for negative numbers, and white counters only for positive numbers.


Activities For the Four Small Boards

In all activities below students may put only one counter on each square.


Task 1

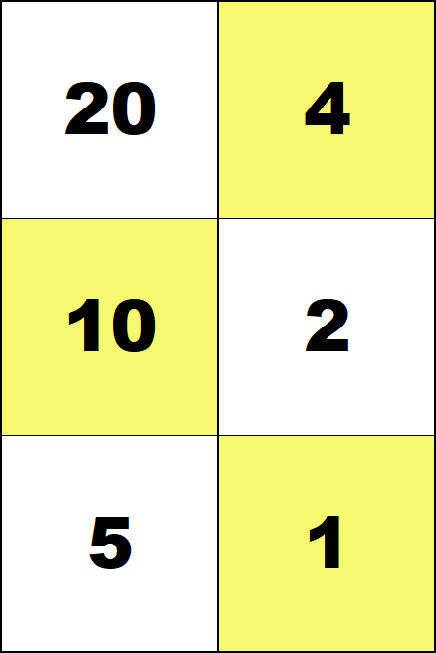

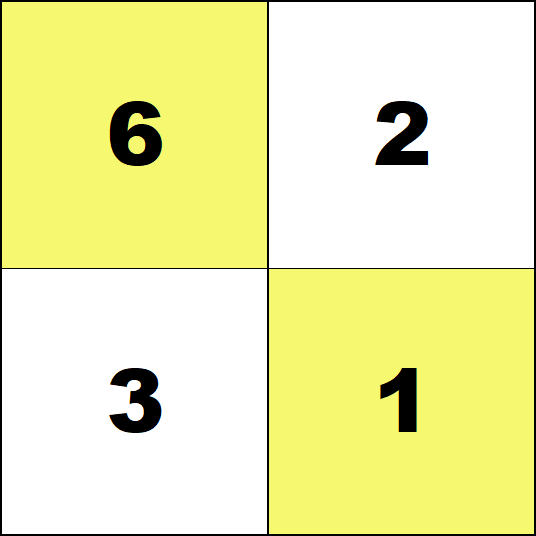

Find all configurations representing zero on the 2 by 2 and 3 by 2 boards.


Examples

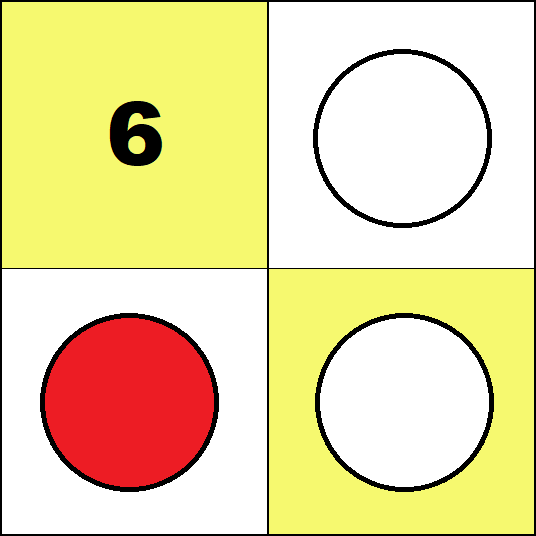

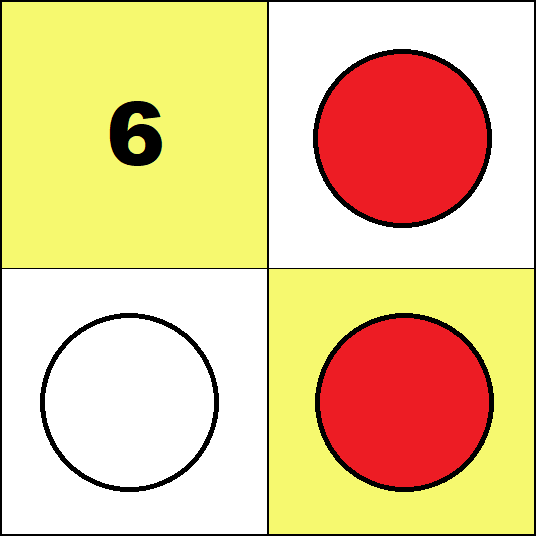

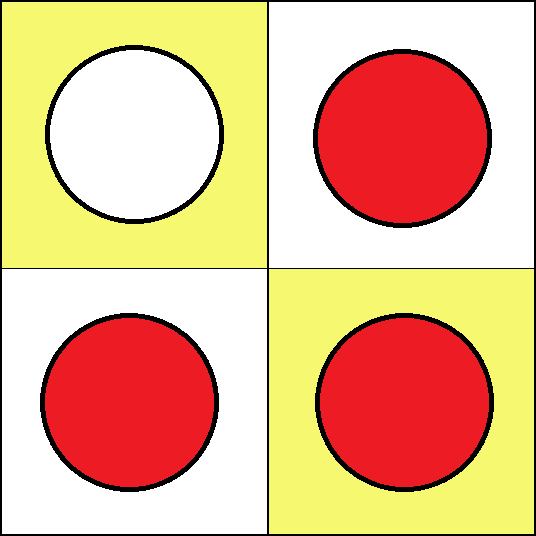

The five boards above show the configurations of 0 on the 2 by 2 board.

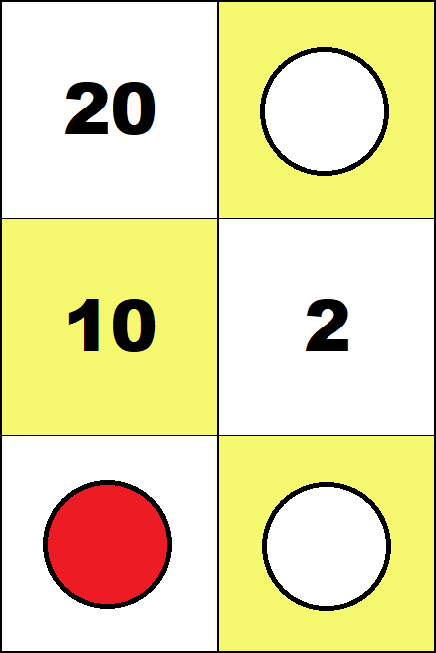

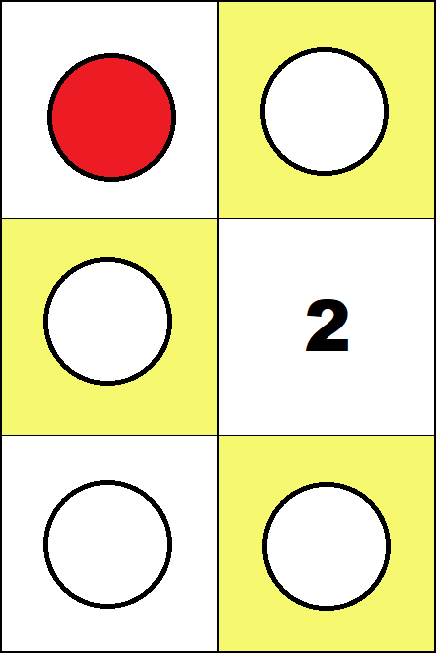

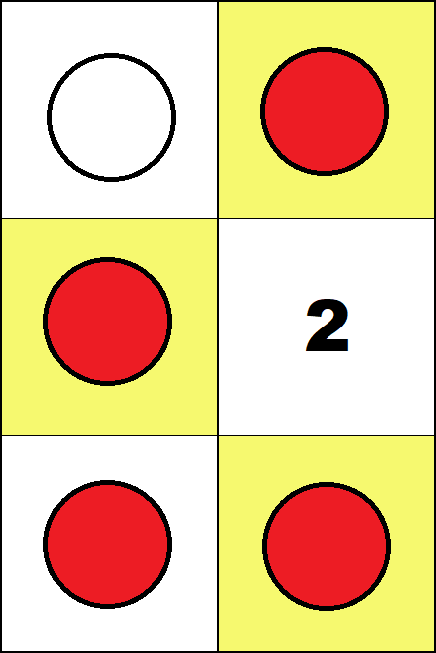

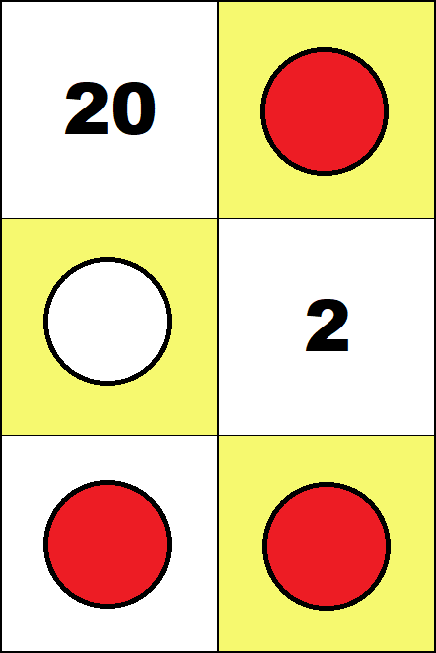

The seven boards above show the configurations of 0 on the 3 by 2 board.


Task 2

Represent all numbers from 1 to 100 with the smallest possible number of counters on the 3 by 4 integer board. (Use both white and red counters.)


Examples



29 = 30 - 1

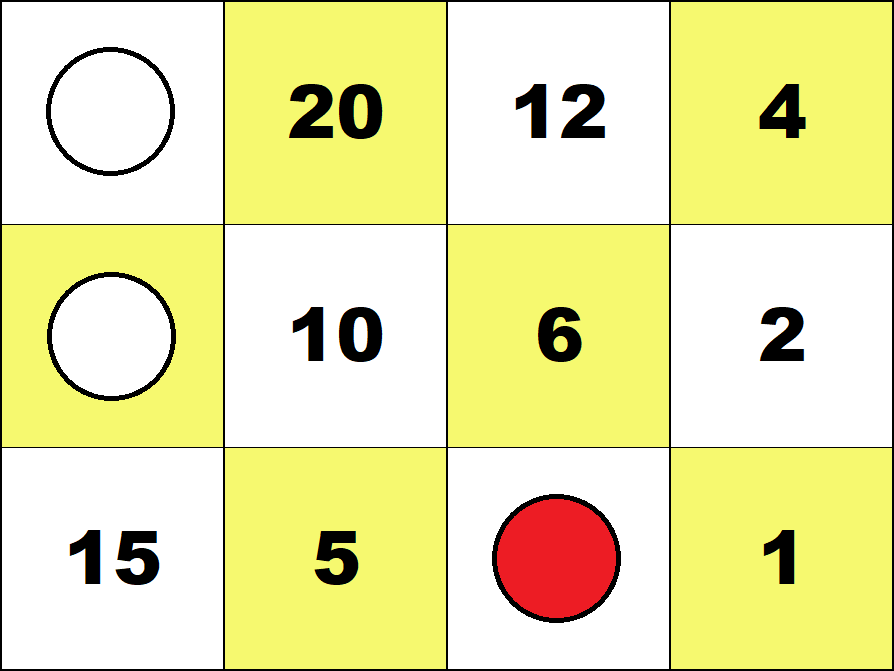

87 = 60 + 30 - 3


Task 3

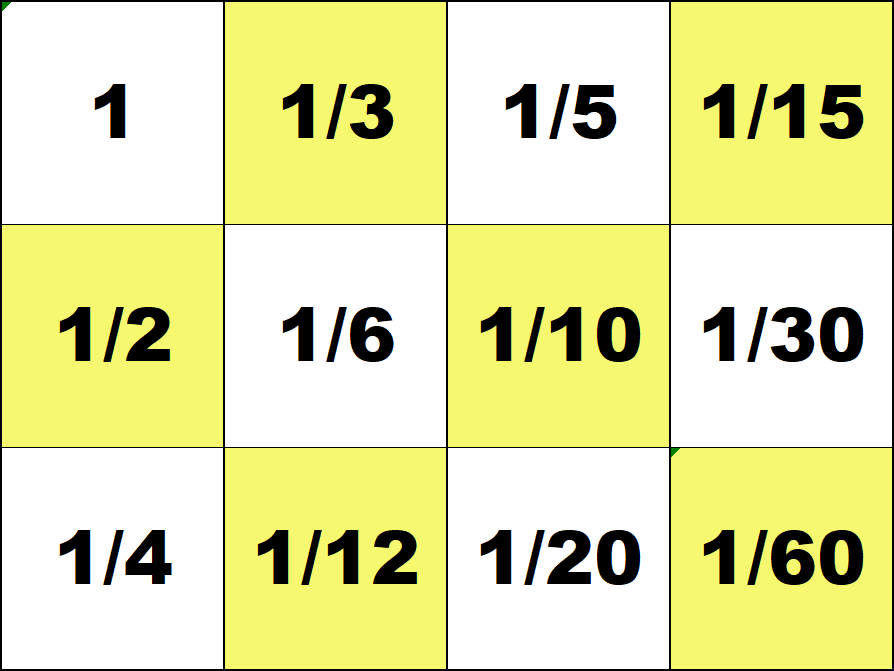

Represent all fractions 1/60, 2/60, ..., 59/60 with the smallest possible number of counters on the 3 by 4 fraction board. (Use both white and red counters.)


Examples

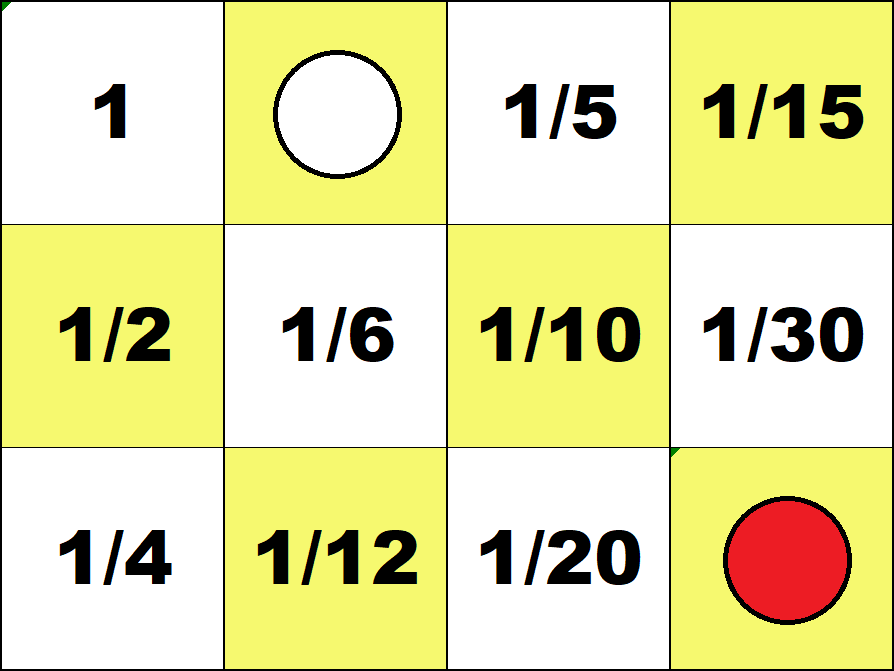

19/60 = 1/3 - 1/60

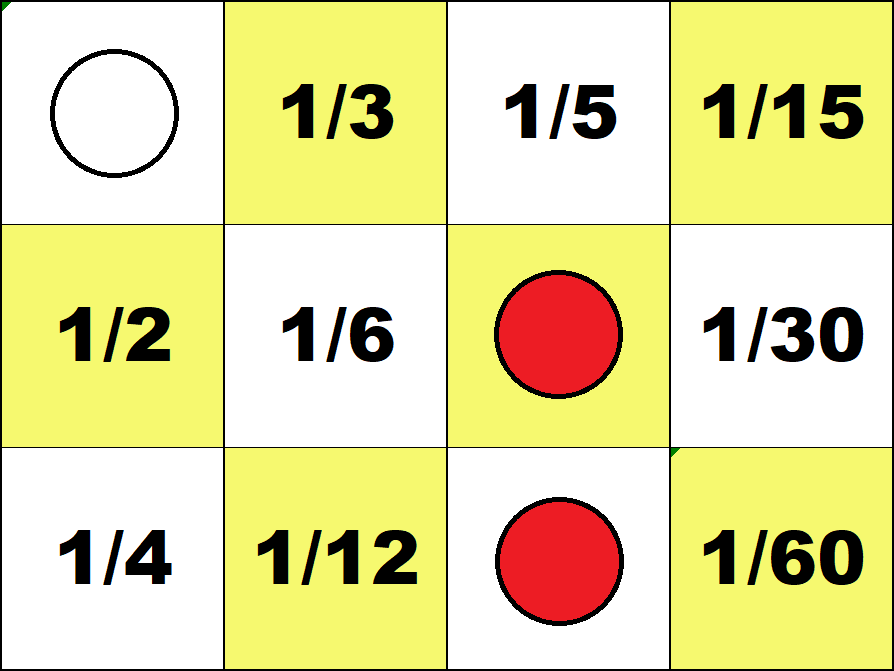

51/60 = 1 - 1/10 - 1/20
